Examples

Nine small apps, each a complete React + TypeScript project you can copy out of this repository and run: pnpm install && pnpm dev (or npm install && npm run dev). Eight are Vite apps; one is Next.js.

	What it shows

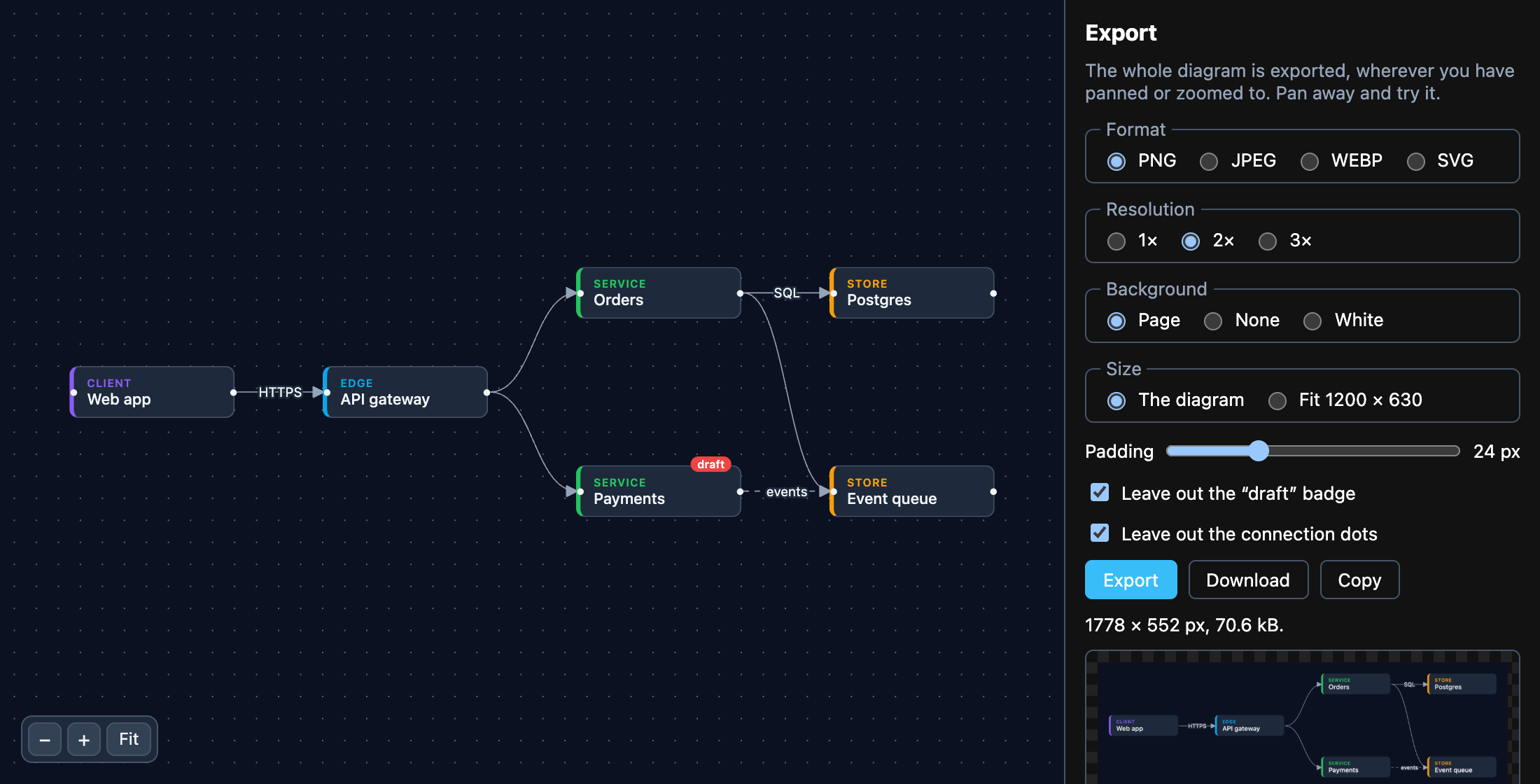

export	The diagram as an image with flowinger/export: PNG, JPEG, WebP or SVG, at 1–3× resolution, on the page’s background, none, or white, as the whole diagram or fitted to a 1200 × 630 social card — then previewed, downloaded, or copied to the clipboard. The whole diagram is drawn wherever the view is panned to. Nodes styled by class come out as they look, because the page’s style sheets go into the image, and filter leaves out what should not (a “draft” badge, the connection dots).

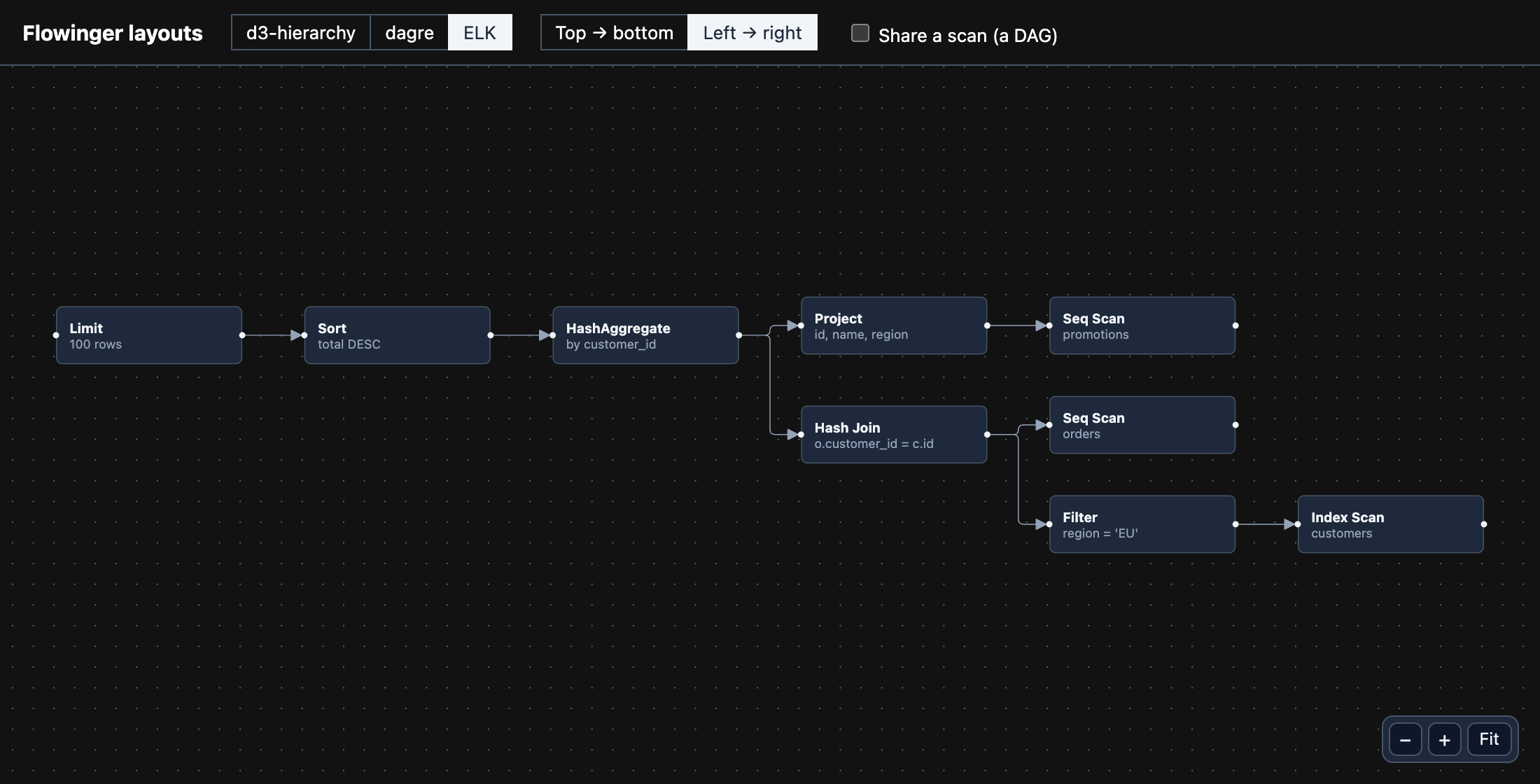

layouts	A read-only viewer on FlowingerCore (no features, the small build). One query plan laid out three ways — d3-hierarchy, dagre and elkjs — top-to-bottom or left-to-right, as a tree or as a DAG. The part to read is src/layout.ts: three functions with one signature, each returning { [id]: { x, y} }.

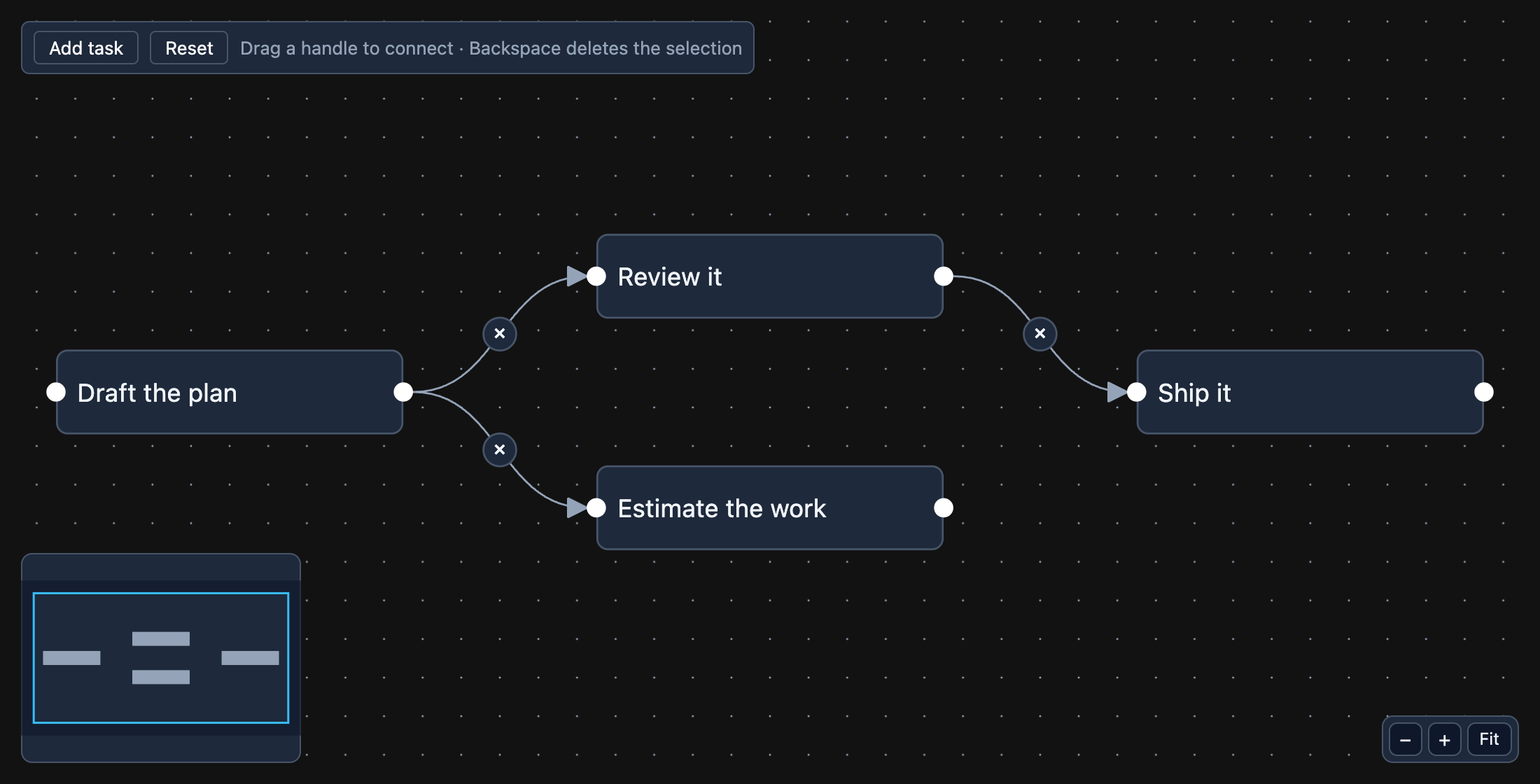

editor	A controlled editor on FlowingerCanvas: drag, connect, select, delete, snap to a grid, a mini-map; a custom node with an input that does not drag it, and a custom edge with a button on it (BaseEdge + EdgeLabelRenderer).
nextjs	Server rendering in Next.js (App Router). A Server Component builds a pipeline, lays it out and works out the viewport with flowinger’s own viewportForBounds, so the HTML arrives framed and nothing moves on load. Then the same graph as a viewer and as an editor with undo. The parts to read: app/pipeline.ts (server-only) and app/Viewer.tsx (why it is a client component).

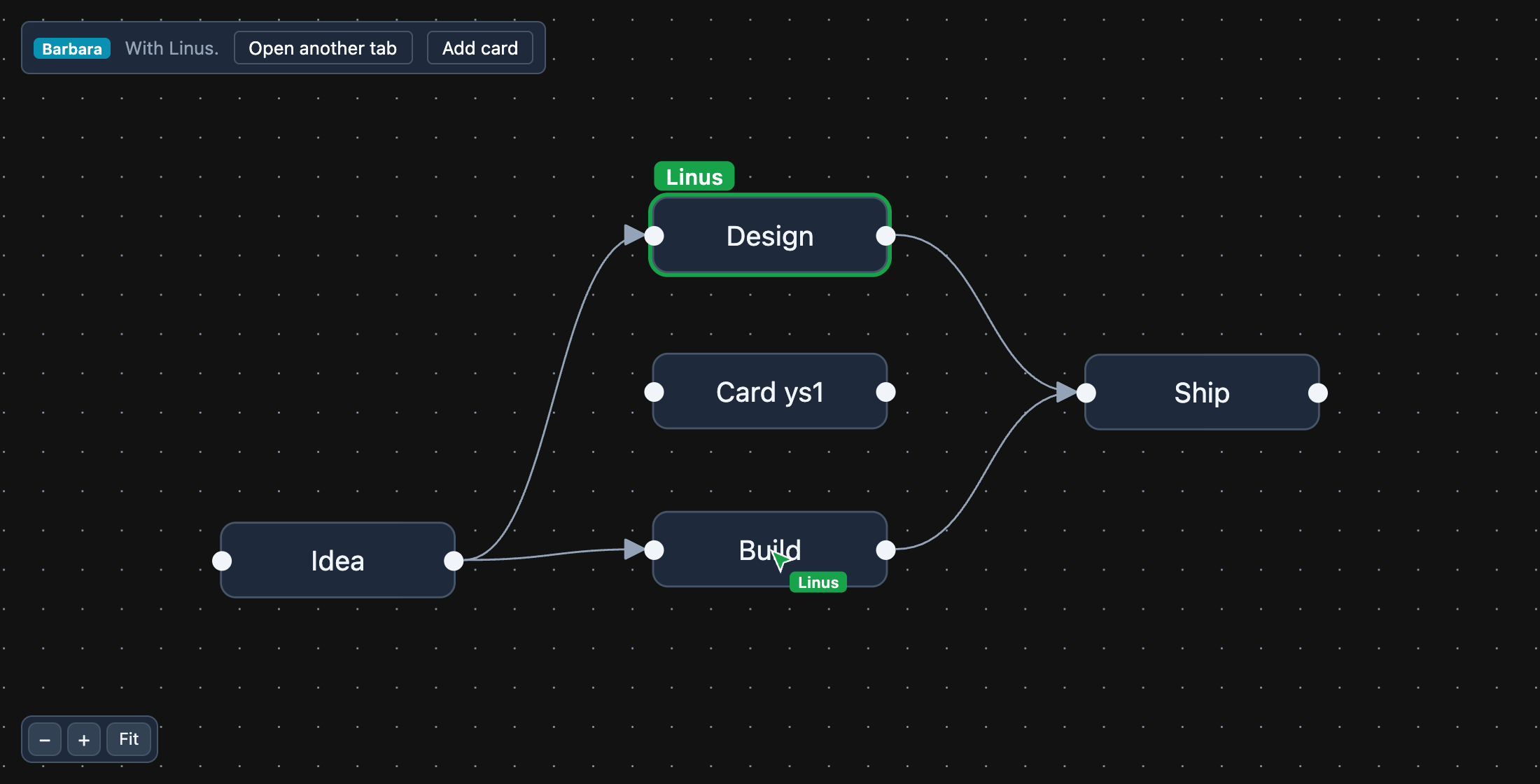

presence	Multiplayer, with Yjs: the graph is a shared Yjs document, so a drag, a new card, a connection or a delete in one tab appears in every other; and each person’s pointer and selection are shared through Yjs awareness — cursors drawn in graph units (so they sit on the same node whatever your pan and zoom), and a ring and name tag on what someone else has selected. It syncs browser tabs over a BroadcastChannel, so it runs with no server: open it twice. src/room.ts says what to swap in (y-websocket, y-webrtc) for people on different machines.

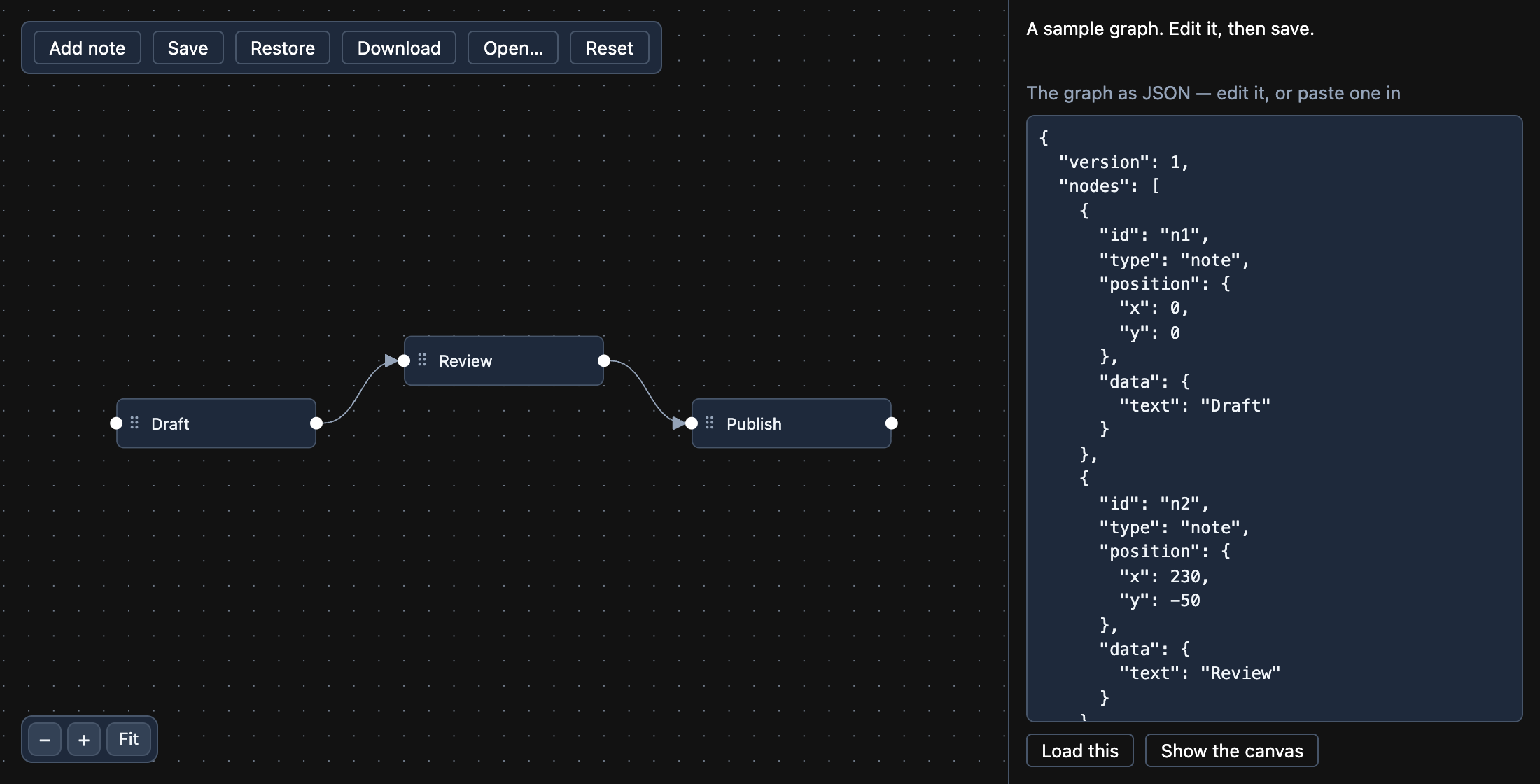

save-load	Saving and loading a graph as JSON. toObject() is the graph as it stands — dragged positions, what was typed into a node, the view — so it is what gets saved: in the browser (it comes back after a reload), as a downloaded .json file, or as text you can edit and load. The part to read is src/flowFile.ts: it checks a file somebody else wrote (ids, positions, edges that point at real nodes) and says what is wrong instead of handing the canvas something it cannot draw.

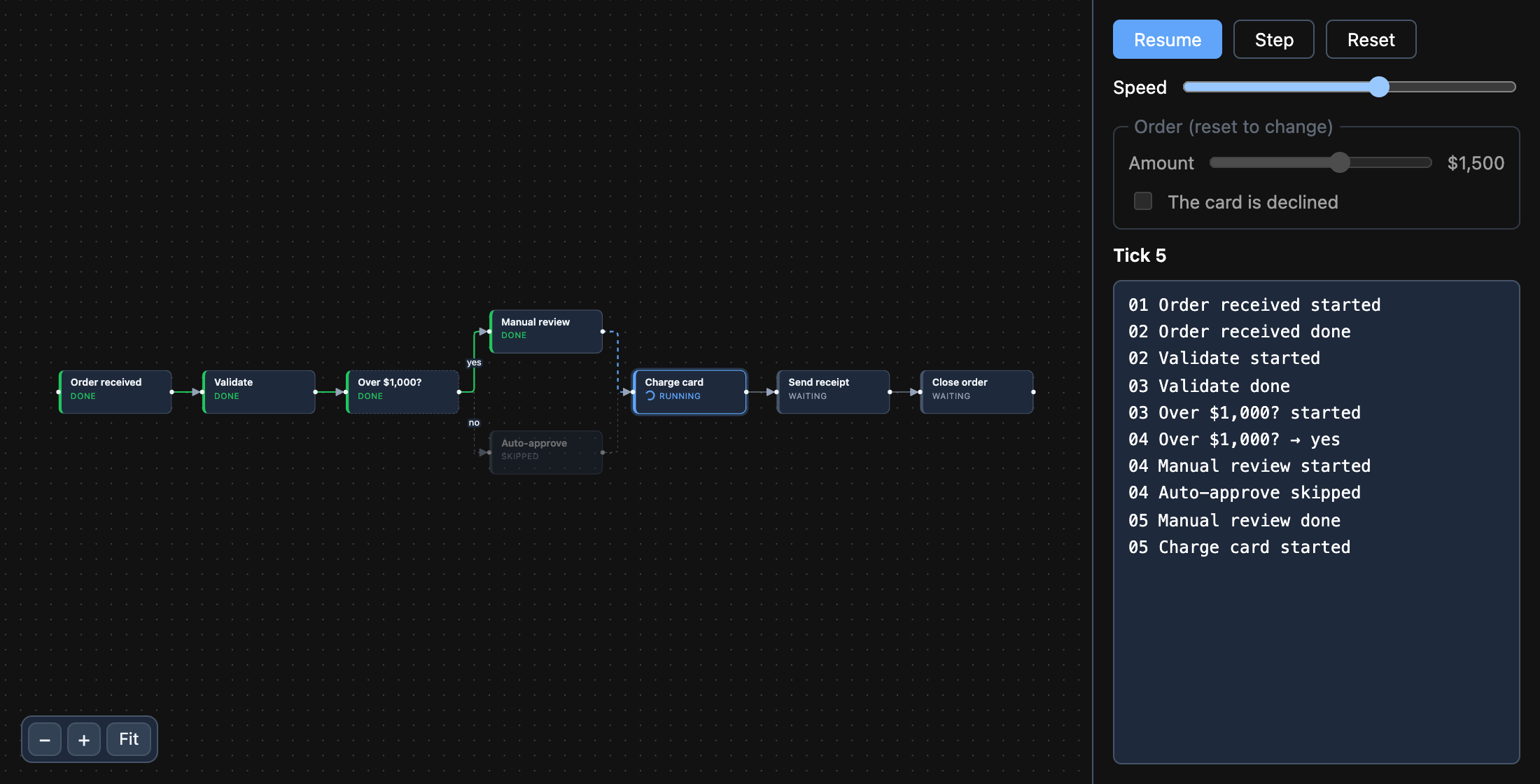

stepper	A workflow, simulated a tick at a time: Run, Step, Pause and Reset over an order process with a decision in it. Each step is waiting, running, done, failed or skipped; an edge is drawn by what it carries (taken, flowing now, or never — the branch a decision did not choose). The order’s amount picks the branch, and a declined card fails the run and skips what follows. The rules are src/simulate.ts, a pure function from one state to the next, apart from the canvas — which only draws each state, so it is a FlowingerCore with no editing features.

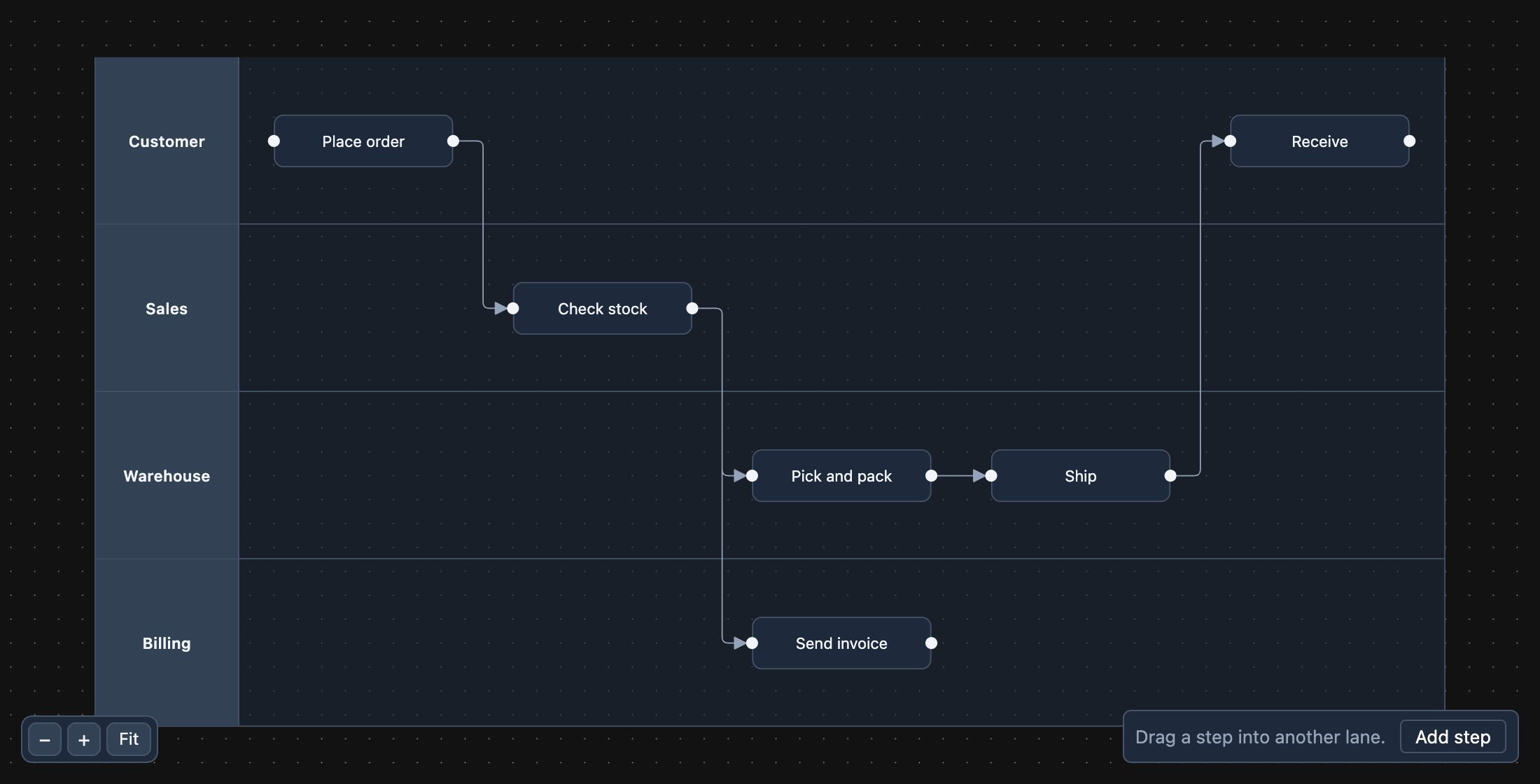

swimlanes	A process in swimlanes: each lane a parent node, each step a child of its lane (parentId), so a step’s position is relative to its lane and it moves with it. Drag a step into another lane and it changes lanes: on onNodeDragStop the lane under its centre becomes its parent and its position is re-based on that lane, so it stays where it was dropped; dropped outside every lane it goes back into the nearest. The lane it would land in lights up during the drag.

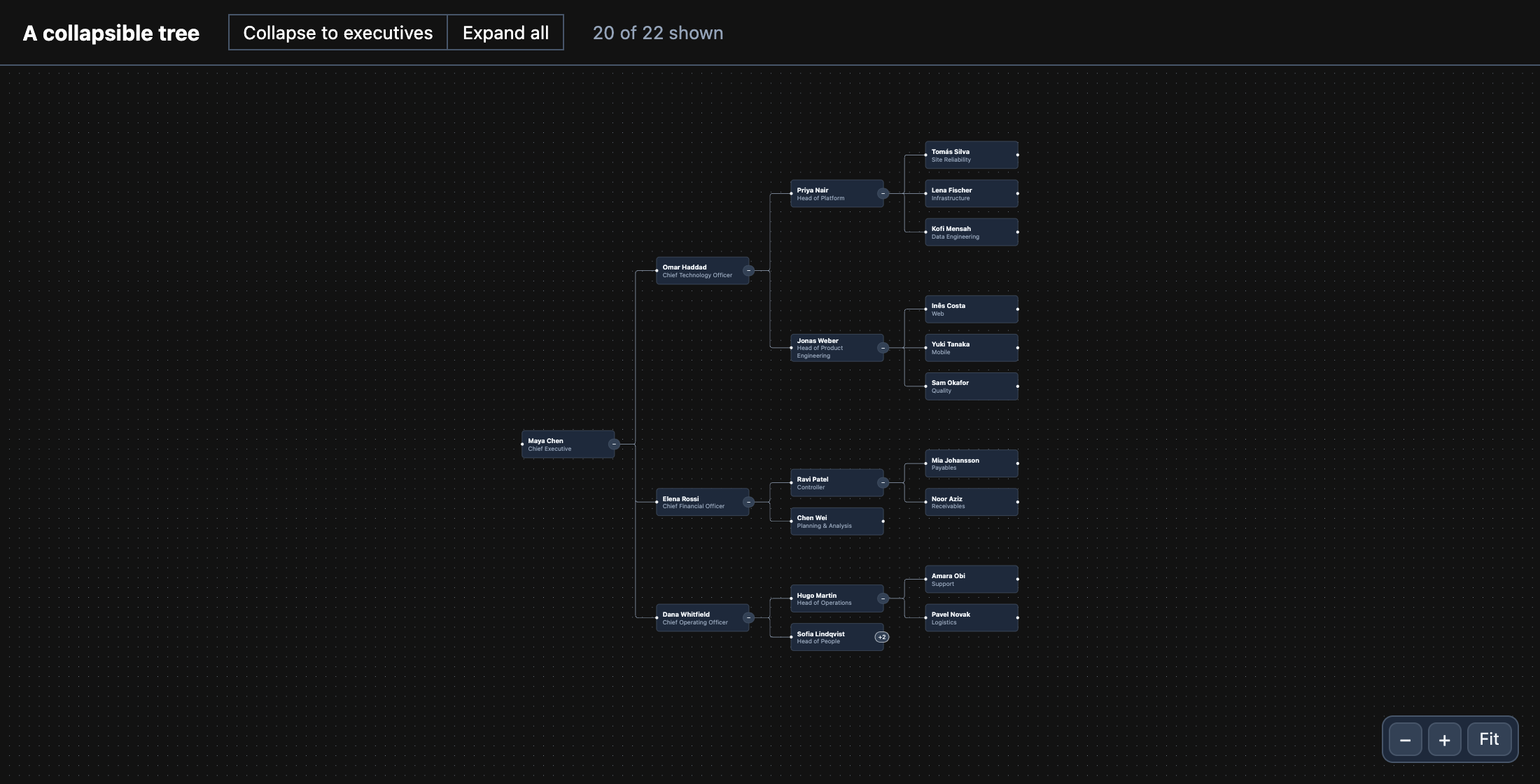

tree	An org chart with collapsible branches, on FlowingerCore and flowinger/tree. Each node has a button that folds everything under it; the tree closes up around what is hidden. The parts to read: useCollapsibleTree called once and handed to the nodes by context, and layoutShown, which runs the layout again over only what is shown.

layouts	editor
export	swimlanes
presence	stepper
save-load	tree

Open one without installing anything, once the repository is public: layouts · editor · export · presence · save-load · stepper · swimlanes · tree · nextjs.

Notes

• Layout is yours. Flowinger draws what it is given; none of the three layout libraries is a dependency of it. A layout needs each node’s size before anything is drawn, so layouts gives every node a fixed one (and says what to do when the content decides — see the comment at the top of layout.ts).
• They use the released package (flowinger from the registry), and only API that release has, so a copied folder works as it is. The repository’s CI builds each one against the packed library on every pull request (node scripts/check-examples.mjs), so an example that stops compiling fails the change that broke it.
• pnpm-workspace.yaml in each folder allows esbuild’s install script: pnpm 10 and later skip a dependency’s script until it is allowed, and report the skipped one as an error. npm and Yarn need nothing.
• nextjs uses Next.js 16, with nothing configured: no stylesheet to import, and no transpilePackages.
• Vite 6, not the repository’s own Vite 8, on purpose: these are meant to open in StackBlitz, whose in-browser runtime has the longest track record with Vite 5 and 6. (Not tested there from this repository — it is a hosted service that needs the repository public.)
